Water Vapour Vortices - Cloud Structure In Satellite Images

by KNMI and FMI


The typical satellite imagery features of this conceptual model can usually be seen only in the WV image; that means that this is a situation with little or no major cloudiness, but with distinct features in the water vapour field. Investigation of about 100 cases over a period of two years shows that a distinction can be made between different WV structures. The two prevailing structures are the so-called WV Eddies and WV Eyes.

Appearance in Meteosat imagery:

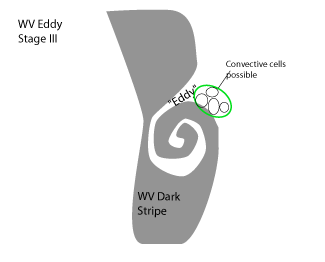

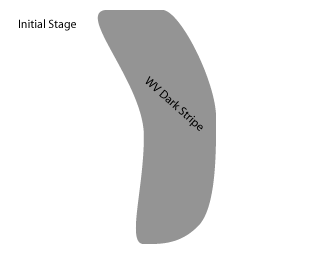

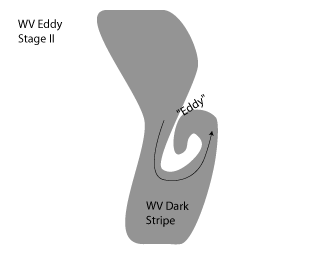

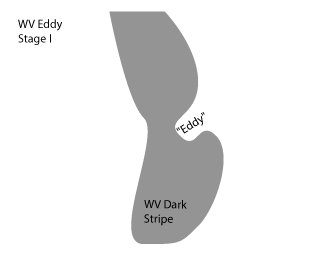

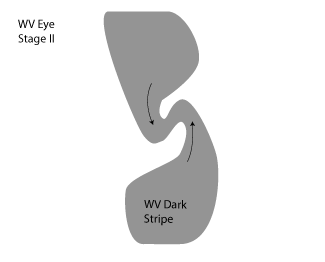

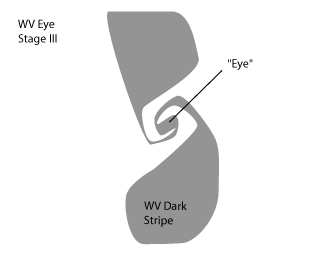

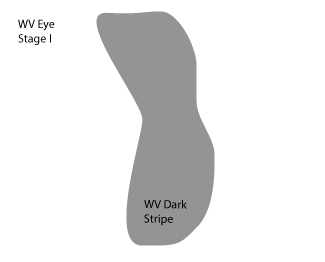

The main differences between the WV Eye and WV Eddy can be seen in the satellite imagery and are summarised in the schematics above and in the table below.

WV Eddy WV Eye
A mesoscale cyclonic spiral structure with wet and dry air masses forming the spiral A dark, almost round spot which has been encapsulated by moister air
Developing due to the deformation of one edge of the Dark Stripe (see schematics above) Developing due to the deformation of both edges of the Dark Stripe (see schematics above)
Some small cloud cells may exist in the leading part of the wet air stream, close to the transition zone between the high and low WV values. No convection occurs. Significant drying out of middle and upper levels of the troposphere and even dissipation of lower cloudiness (clear spells).
End stage: Filling with moist air due to convection End stage: Merging with other system, disturbed by mountains or disappearing by overrunning moist air
In some cases: a WV Eddy transforms into a WV Eye

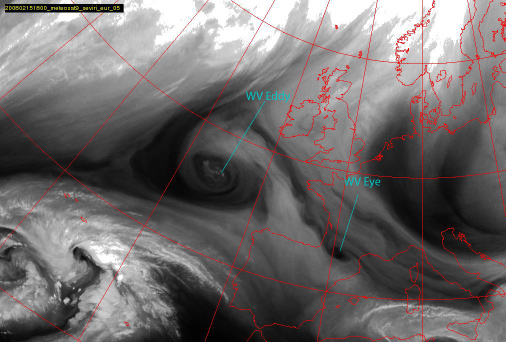

15 February 2008/18.00 UTC - Meteosat 9 WV 6.2 image

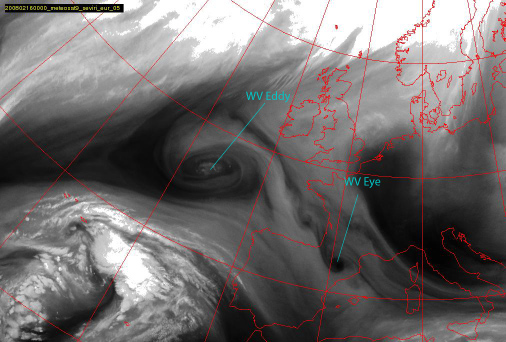

16 February 2008/00.00 UTC - Meteosat 9 WV 6.2 image

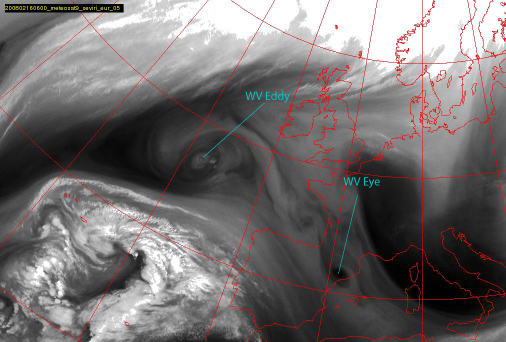

16 February 2008/06.00 UTC - Meteosat 9 WV 6.2 image

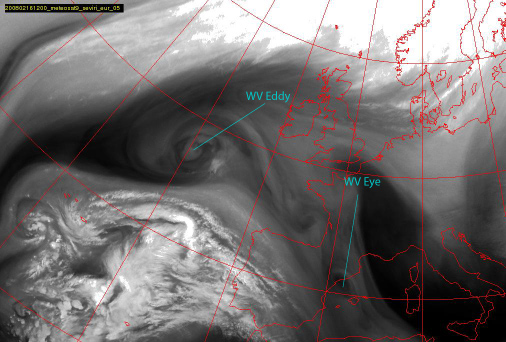

16 February 2008/12.00 UTC - Meteosat 9 WV 6.2 image
The WV images above show a nearly stationary WV Eddy south-west of Ireland and a WV Eye over the Pyrenees, slowly moving to southeast. The first impression of these vortices is that WV Eddy is clearly larger, whereas WV Eye has only a diameter in the order of a few hundred kilometres. Within the core of the WV Eddy, one can see some bright white spots, which indicate that convection is present.

WV Eyes can develop in series - also in this case one can see even one or two additional small-scale WV Vortices extending from the Bay of Biscay towards the Pyrenees.

In the VIS and IR imagery below, for WV Eddy a little bit of Stratocumulus Sheets can be seen and the convective cells near the Eddy centre can be seen in the VIS channel, but no defined cyclonically rotating cloud band exists. For WV Eye there is no associated cloudiness at all.

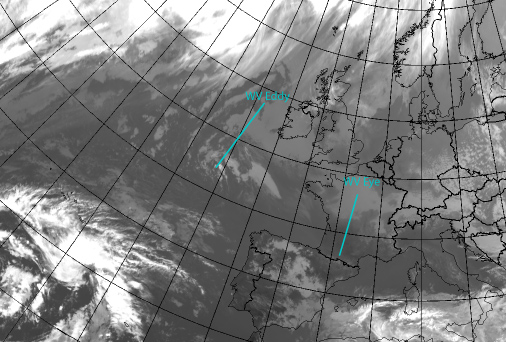

15 February 2008/15.00 UTC - Meteosat 9 IR 10.8 image

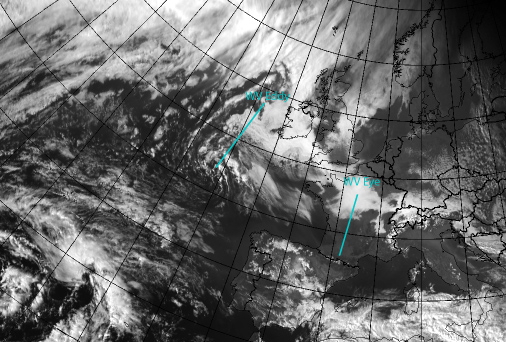

15 February 2008/15.00 UTC - Meteosat 9 VIS 0.6 image
The Airmass RGB loop below shows the development of the WV Eddy and Eye in this situation. The reddish colours indicate dry air at the upper troposphere. For the WV Eddy the red area is large and clear, for the WV Eye in this case the red area is recognisable but much smaller.

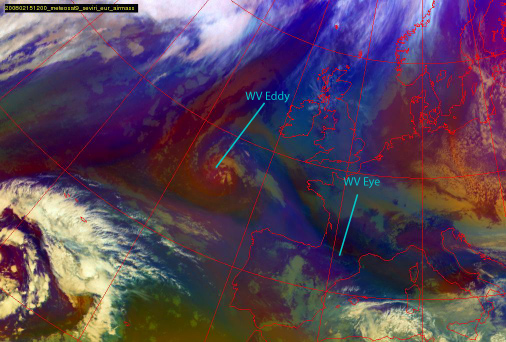

15 February 2008/12.00 UTC - Meteosat 9 Airmass RGB image
