Sea-breeze - Typical Appearance In Vertical Cross Sections

by FMI and KNMI

In vertical cross-sections the convergence caused by opposing surface/low-level winds at the Sea-breeze front is normally restricted to the lowest kilometre of the atmosphere.

Low-level convergence

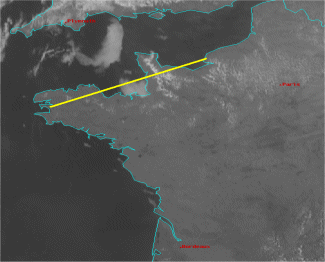

22 April 2009/14.00 UTC - Meteosat HRV image; position of vertical cross section indicated

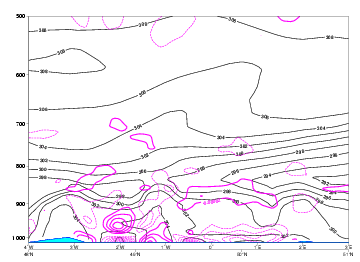

22 April 2009/12.00 UTC - Vertical cross section; magenta dashed: divergence, magenta solid: convergence

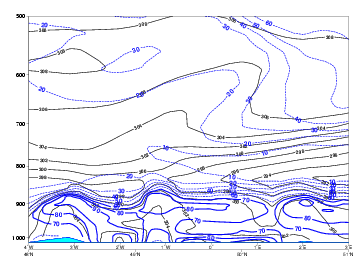

22 April 2009/12.00 UTC - Vertical Cross section; blue: relative humidity

From the theory convergence is to be expected in a See-Breeze situation over land and divergence over sea. Normandy has coordinates around 01.5degr W. Convergence is forecast in that area with divergence above. To the east, over the Seine - Bay and west, over the Channel Islands, divergence is forecast with convergence aloft.

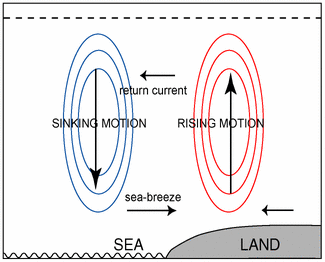

With this pattern in mind upward motions have to be present over Normandy with downward motion to the east and west. This pattern is well forecast in the images below with on the left side the expected and theoretical scheme of vertical motion and on the right side the calculated values of up - and downdrafts. The satellite image clearly shows the convective clouds over Normandy and the cloud free area's to the west and east.

Although not a key parameter on its self a vertical cross section on Relative Humidity is plotted on the right side of the Div./Conv - scheme. with RH = 80% or more over Normandy.

Low-level convergence

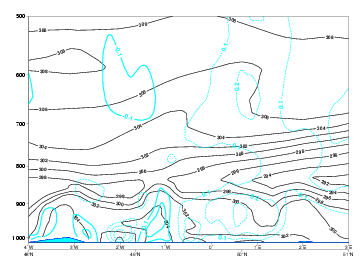

22 April 2009/12.00 UTC - Vertical cross section; cyan solid: vertical motion (omega) - upward motion, cyan dashed: vertical motion (omega) - downward motion
