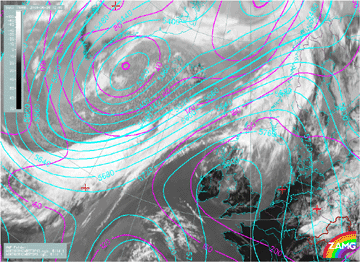

08 June 2006/12.00 UTC - Meteosat 8 IR10.8 image; magenta: height contours 1000 hPa, cyan: height contours 500 hPa
|
|
|
|

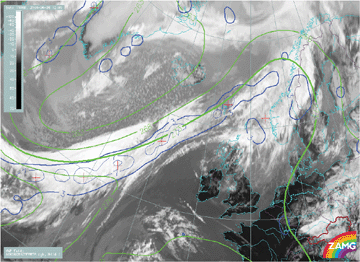

08 June 2006/12.00 UTC - Meteosat 8 IR10.8 image; blue: thermal front parameter 500/850 hPa, green: equivalent thickness 500/850 hPa
|
|
|
|

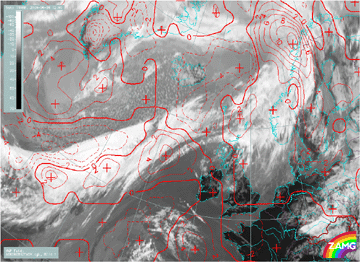

08 June 2006/12.00 UTC - Meteosat 8 IR10.8 image; red dashed: temperature advection - CA 700 hPa, red solid: temperature advection - WA 700 hPa
|
|
|
|

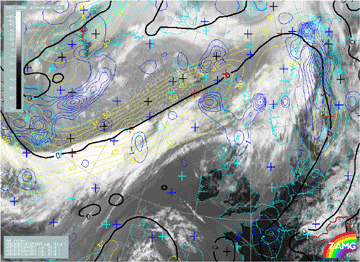

08 June 2006/12.00 UTC - Meteosat 8 IR10.8 image; blue: negative vorticity advection 500 hPa, cyan: negative vorticity advection 300 hPa,
yellow: isotachs 300 hPa, black: zero line of shear vorticity 300 hPa
|
|
|
|
