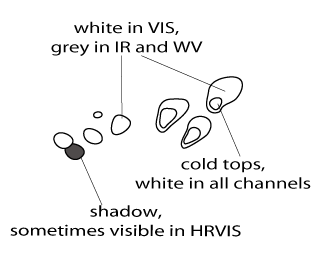

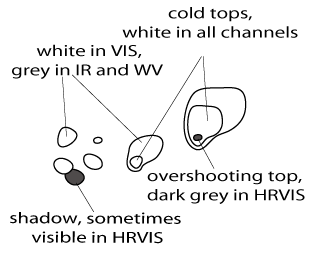

• Cb Clusters appear as a group of relatively large separate cells in satellite images.
• In the IR, VIS and WV images Cb Clusters are generally white, indicating thick, multi-level clouds, but in the initial phase of development separate grey cells are visible, indicating relatively low tops.
• Very often the surrounding atmosphere is characterized by the development of other convective cells.
• In well-developed phase, cirrus shields of single CB cells merge, leading to a very white smooth cloud shield in the IR and a somewhat transparent appearance in the VIS image.

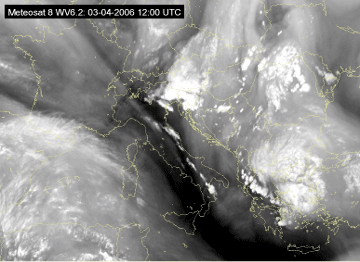

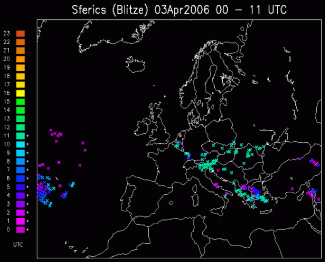

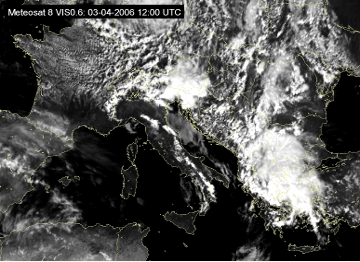

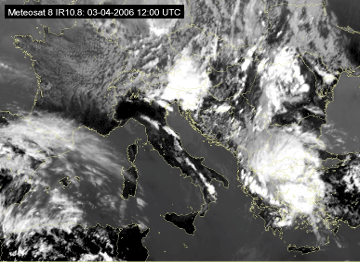

In most cases Cumulonimbus clouds of considerable dimension exist within a group of smaller convective cells (see Meteorological physical background). In the mature stage the anvils of the large Cumulonimbus clouds extend downstream from the actual cells, which appear as a transparent grey to white layer in the IR image. Satellite image shows clouds from Cold Front in Cold Advection and Cb Clusters in the Warm Air in front of it over Balkan Peninsula. Both Clusters, one over western Greece and another in eastern Croatia and Serbia can be seen in all three images. In IR image, only the Cbs in mature stage are pronounced, while in VIS it is quite difficult to make the distinction. In WV the Cb cluster is easily seen, especially when it is well developed like the one over Greece.

Appearance in Meteosat 8 HRVIS and RGB composite imagery

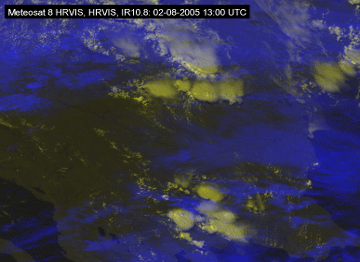

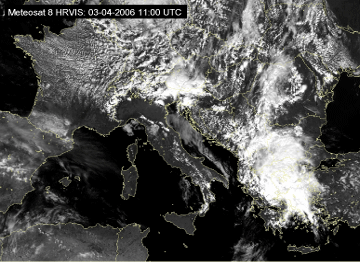

High resolution of Meteosat 8 HRVIS images makes smaller fine-scale cloud structures more distinct. The process of Cb Clusters developing into MCS over Slovenia and southern Austria can be nicely followed while multi-cell structure of the bigger system is much better visible. To take into account and combine different types of information retrieved from SEVIRI imagery, such as optical thickness of clouds, particle size and phase, upper and mid level moisture and cloud top temperature, combinations of channels are constructed.

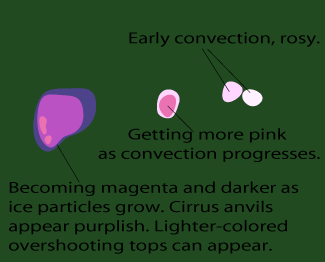

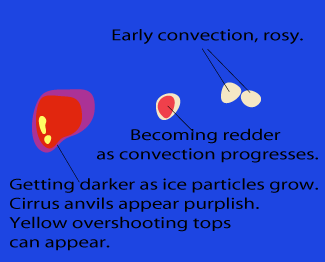

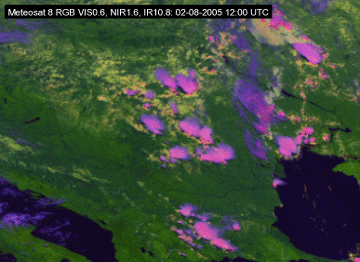

To observe daytime convection, Microphysical RGB VIS0.6, NIR1.6, IR10.8i is recommended. In this type of image, already at a very early stage the convection appears white to light pinkish, getting more pink as convection progresses; first icing can be spotted as magenta cores turning darker to become purple as ice particles grow.

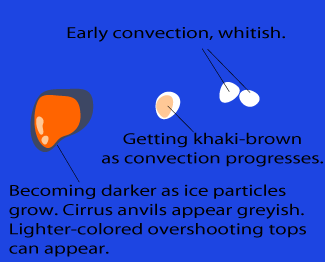

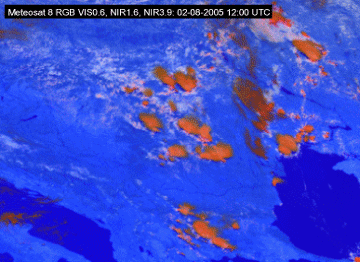

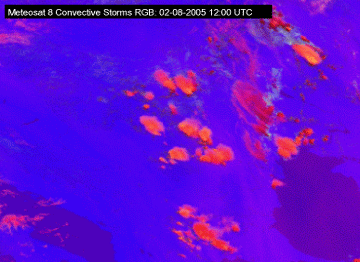

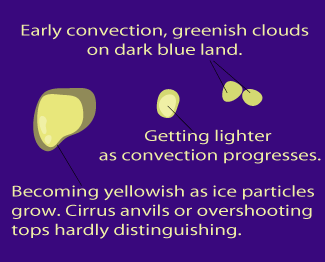

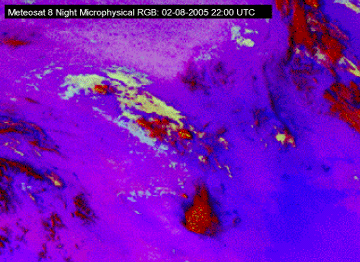

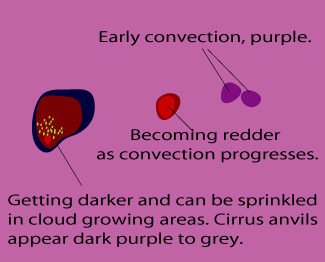

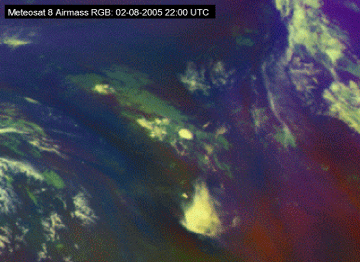

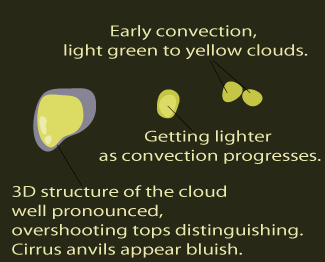

Due to the dual character of NIR3.9 channel, similar information can be found in RGB VIS0.6, NIR1.6, NIR3.9. The best visual appearance of severe storms is given by so called Severe Convection RGB (WV6.2-WV7.3, NIR3.9-IR10.8, NIR1.6-VIS0.6). In this type of composite cold Cb tops with small ice particles appear in yellowish colours and well developed Cbs with large ice particles appear red. In cases of severe thunderstorms small particles or even water droplets can be brought up to the cloud top by strong updrafts appearing in satellite image much lighter than the environment. For that reason, overshooting tops can be easily identified in this RGB. Although this composite is not aimed strictly for detection of convection, it can be seen in so called Night Microphysical RGB (IR12.0-IR10.8, IR10.8-NIR3.9, IR10.8). In this combination thick Cb clouds appear dark orange or red. In some parts of the clouds, namely growing parts, the colour is somewhat sprinkled, effect resulting from noise in channel NIR3.9. For night-time detection, Airmass RGB (WV6.2-WV7.3, IR9.7-IR10.8, WV6.2i) can also be used. Thick high level reaching Cb clouds appear white in this type of images. This is also a very good combination for early detection of convection. It can be seen that convective development takes place in the dark blue areas of moist lower and dry higher troposphere. Dry stratospheric air intrusion which enhances the instability and makes this area favorable for convection can be recognized by its red color. Combinations with HRVIS channel bring in the advantages of high spatial resolution. In the most used RGB composite of the high resolution visible (HRVIS,HRVIS,IR10.8i) cirrus anvils appear bluish and most intense convective development can be recognized by its pronounced light yellow, sometimes even white color. Due to the three times higher resolution, overshooting tops are clearly visible.

Appearance in AVHRR imagery

• Cb Clusters are easy to detect with AVHRR images, as the better resolution helps to see the individual cells better.
• Combination image 124 is very powerful in showing these cells. As the cells grow and the cirrus anvils spread, the intensely white cores stay identifiable within the bluish cirrus filaments.
• 124 image combinations usually give a better visual appearance than daytime 345 image combinations due to better contrast between convective areas within the cloud and surrounding cirrus clouds. Cb Clusters are also very striking in 345 image combinations due to strong contrast between white clouds and dark red cloud-free land areas.

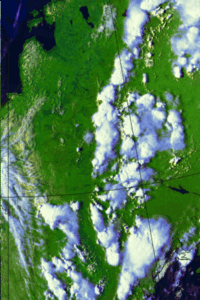

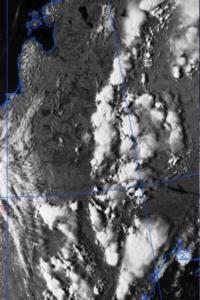

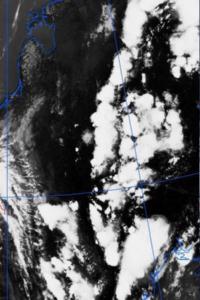

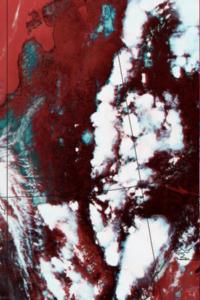

In the satellite images numerous separate well developed Cb cells are located over western Russia, White Russia and Ukraine (the northwestern corner of the Black Sea is located in the bottom right corner of each image, while Estonia is located in the top left corner).

The Cb cells can easily be identified as being mainly separate clouds systems. Some merging of the clouds is taking place just northwest of the Black Sea. The NOAA 124 images show the thick Cb cores within the surrounding bluish cirrus anvils. At the same time the Cb cells in the NOAA 345 images are very distinct white in otherwise reddish surroundings, but the details are partly lost due to the saturated whiteness everywhere within the cells.

Similar differences can also be seen in the individual VIS and IR images.
