Occlusion: Cold Conveyor Belt Type - Meteorological Physical Background
by ZAMG and KNMI
As has been explained in the general remarks
the starting viewpoint for the conceptual model Occlusion: Cold Conveyor Belt Type is the typical configuration in the satellite imagery and its development up to an eventually longer lasting mature stage.
The classical Norwegian model
The classical development of an Occlusion is described in the well-known polar front theory after Bergeron
as a development from a Wave stage (see Wave
) with a well developed Cold Front (see Cold Front
, Cold Front In Cold Advection
, Cold Front In Warm Advection
, Split Front
and Arctic Cold Front
) and Warm Front (see Warm Front Band
, Warm Front Shield
and Detached Warm Front
). The basic idea is that the Cold Front moves faster than the Warm Front. Therefore the warm sector continously becomes more narrow until finally the Cold Front overtakes the Warm Front completely, thereby lifting the warm air. This is the typical situation for the Occlusion band which turns cyclonically around the core of the cyclone.
According to this classical theory of the Occlusion band, this front separates the cold air mass, which is situated in front of the former Warm Front, from that behind the former Cold Front with a tongue of warm air within the higher levels of the troposphere (see
Typical appearance in vertical cross section
). Following the distribution of the temperature in front of and behind the occlusion, two sub-types can be separated:
- If the air situated in front of the Warm Front has about the same temperature as the air situated behind, the
temperature gradient dissolves during the process of the Occlusion. In this case the Occlusion is characterized
only by a line of cyclonic shear and convergence which can be found vertically below the merging point of both
- If the air situated in front of the Warm Front is colder than the air behind, a so-called Warm Front
Occlusion develops which has a forward inclined frontal surface.
- If the air situated in front of the Warm Front is warmer than the air behind, a so-called Cold Front
Occlusion develops which has a backward inclined frontal surface.

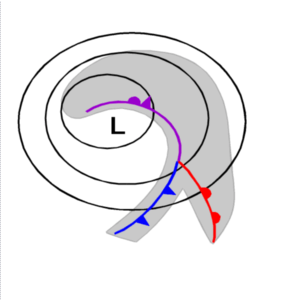

During this process, the displacement of the low
becomes smaller, until it becomes quasi-stationary.
Deviations between cloud configurations in satellite images and the classical Norwegian model

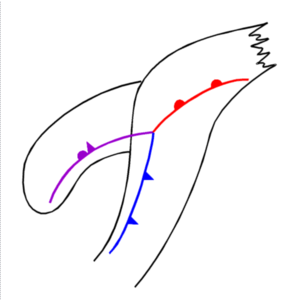

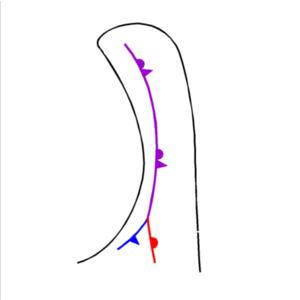

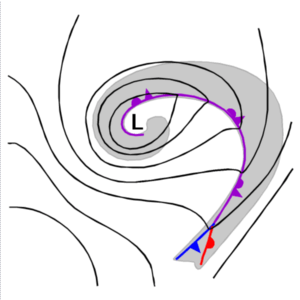

Very soon after the use and study of satellite images it became clear that this idealized theory cannot be observed in every step and detail in reality. In particular, the overtaking of the Warm Front by the Cold Front with very narrow warm sectors can never be seen (left schematic). Instead of this a mergence of Cold and Warm Front cloudiness in the centre of the surface low takes place followed by a westward extension of the Occlusion cloud spiral, while the Warm Front cloudiness becomes shorter (right schematic).
Beside this there are Occlusion spirals which contradict the overtaking mechanism completely. Those developments show a lower cloud spiral penetrating westward from below the Cold Front and Warm Front.
As already mentioned for Cold Fronts and Warm Fronts, those contradictions between the typical polar front theory and the appearance in the satellite imagery were also one reason for the conveyor belt theory.
Conveyor Belt model
This theory is not an independent new model, but allows a different insight into the same phenomena of the Occlusion process. It shows a much bigger variety of development possibilities and clearly indicates that the Occlusion development described by the Norwegian model
represents only a special case.

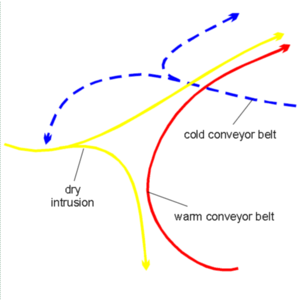

The conveyor belt theory for the Cold Front deals predominantly with two relative streams: the warm conveyor belt and the dry intrusion. The warm front deals predominantly with the relative streams of the warm conveyor belt and the cold conveyor belt. For the Occlusion all three conveyor belts are relevant:
- The warm conveyor belt is a rising relative stream from south, south-eastern directions turning to north,
north-eastern directions; it transports warm and moist air.
- The dry intrusion is a sinking relative stream from north-west to south-east, splitting into two
branches: a further sinking one to the south-west and a rising one to the north-east.
The cold conveyor belt is a rising relative stream from east, south-east which is initially below the warm
conveyor belt, but then emerges from below and extends to northern directions.
The vertical relation of these three conveyor belts to each other results in the different cloud types of the Occlusion: the multilayered Warm Conveyor Belt Type of the cloud spiral and the Cold Conveyor Belt Type.
The latter form of the Occlusion can much more often be observed in the satellite image than the Warm Conveyor Belt form of the Occlusion
Occlusion: Warm Conveyor Belt Type
).It can only be explained with the help of the conveyor belt theory.

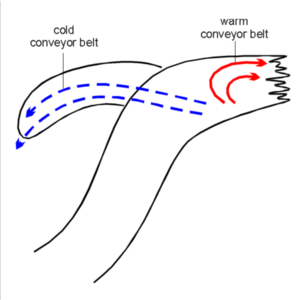

The dominant streams in this case are the cold conveyor belt and the warm conveyor belt.
The lower cloud spiral develops in the rising Cold Conveyor Belt, while the higher cloud band of Warm Front and Cold Front are determined by the warm conveyor belt.
In literature different configurations of the cold conveyor belt are mentioned:
Investigations at ZAMG on all Occlusion events of one year clarified and contributed to these ideas.
- The lower levels of the troposphere are characterized by an ascending cold conveyor belt with two sub-types
according to its orientation:

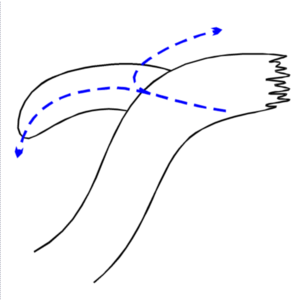

- In some cases a splitting of the stream lines within the area of the point of the Occlusion can be
observed. This type exists when the frontal surface reaches the ground.

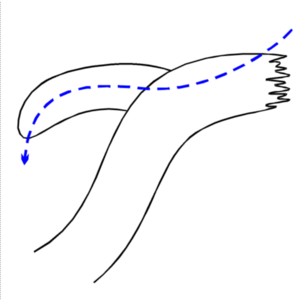

- In other cases the cold conveyor belt first follows the Occlusion band from north, north-east to
- Both sub-types show the rising and cyclonically curved cold conveyor belts, which are responsible for the
development of the lower cloud spiral. Not as easy to explain is the splitting of the relative stream in one of
the schematics above. There are two possible obvious explanations:
- It is a branch of a splitting cold conveyor belt similar to the classical description.
- The eastern anticyclonic branch represents the lowest parts of the warm conveyor belt, while the western
cyclonic branch represents the cold conveyor belt.
- At the present time intensive investigations favour the second explanation. Reasons for this are:
- The fact that on the isentropic surfaces of only one Kelvin distance a smooth growth of the eastern
branch into the synoptic scale warm conveyor belt can be observed.
- The good agreement between Warm Front cloudiness and relative streams there.
- Reasons against this explanation come from the fact that the relative stream of the cold conveyor belt branch
seems to arise from an area to the south of the warm conveyor belt. The key for the explanation can be found in
an intensive inspection of vertical cross sections.

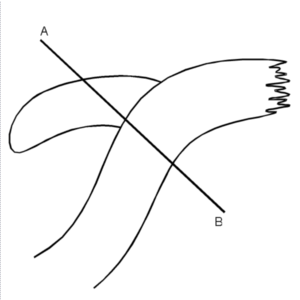

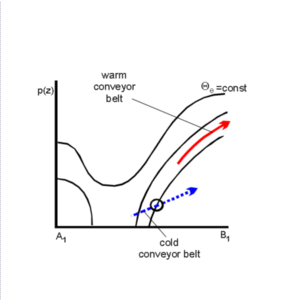

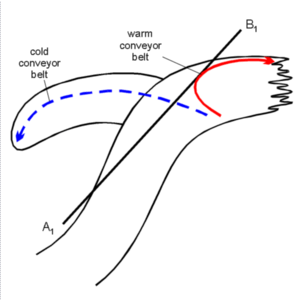

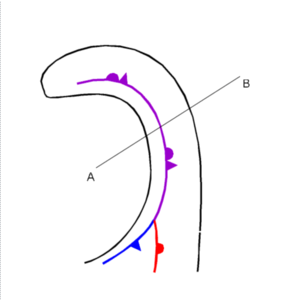

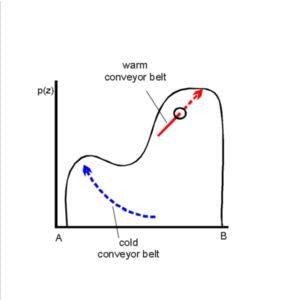

There is an intensive upward inclination in the cross section of the isentropic surfaces, which leads to the fact that an isentropic surface which reaches the ground in the cross section A1

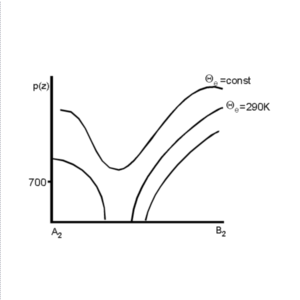

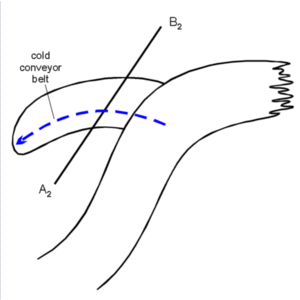

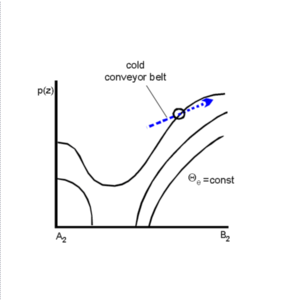

(schematic bottom left) is already within the middle level Occlusion part in the cross section A2
(schematic bottom right). Consequently in the schematics at the bottom left both relative streams can be seen: the cold conveyor belt which is only in the lowest layers and below the warm conveyor belt. It cuts the cross section perpendicularly, while the warm conveyor belt rises on the isentropic surface above. In the cross section above at the bottom right only the cold conveyor belt can be observed.

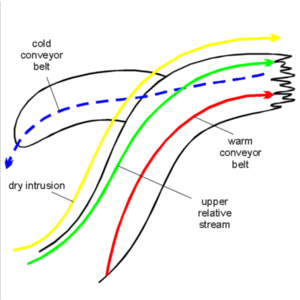

- The mid- and upper levels of the troposphere are characterized by three different conveyor belts. The moist air
is within the warm conveyor belt as well as within the upper relative stream at the anticyclonic side of the
jet, and the dry air is within the dry intrusion at the cyclonic side of the jet.
- The warm conveyor belt and the upper relative stream are parallel to the cloud band of the Cold Front, and turn
then anticyclonically parallel to the cloud band of the Warm Front (this is a difference from the warm conveyor
belt type of Occlusion (see
Occlusion: Warm Conveyor Belt Type
- The dry relative stream of the dry intrusion crosses the cloud spiral at the cyclonic side of the jet, which is
the area of the Occlusion spiral. This situation restricts the development of higher cloudiness there and leads
to the typical appearance in the satellite image (see
Cloud structure in satellite image
). Further westwards the tops of the cloud spiral are becoming colder again as the cold conveyor belt ascends
- Such a distribution of conveyor belts can also be seen as a consequence of the jet above:
The cold conveyor belt described in this chapter develops if the absolute topography within the lower levels of the troposphere shows a closed cyclonic circulation. The mid- and upper levels of the troposphere are characterized by an upper level trough. During the lifetime of such a cloud spiral the trough within the mid- and upper levels of the troposphere might get more and more pronounced ending up in a closed cyclonic circulation. As a consequence of this process the development of high cloudiness within the cloud spiral immediately downstream of the point of the Occlusion can be observed (see
cloud structure in satellite image
21 June 2005/00.00 UTC - Meteosat 8 IR 10.8 image; position of vertical cross section A indicated

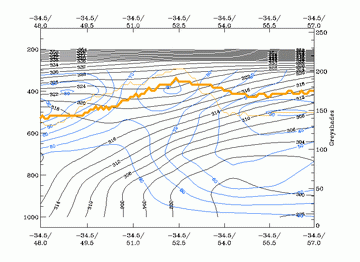

21 June 2005/00.00 UTC - Vertical cross section A; black: isentropes (ThetaE), blue: relative humidity, orange
thin: IR pixel values, orange thick: WV pixel values
In cross section A, extending over the Atlantic from approximately 48N/34W to approximately 57N/34W, only the cold conveyor belt on the isentropic surface crosses the cross section perpendicularly. Humidity maxima and IR peaks contribute to the cold conveyor belt.
The relative streams cut the cross section perpendicularly on the isentropic surface of 314 K at a height between 650 and 850 hPa.

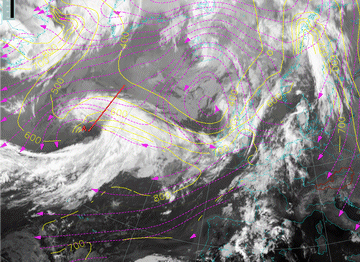

21 June 2005/00.00 UTC - Meteosat IR image; magenta: relative streams 314K - system velocity: 239°
18 m/s, yellow: isobars 328K; position of vertical cross section A indicated

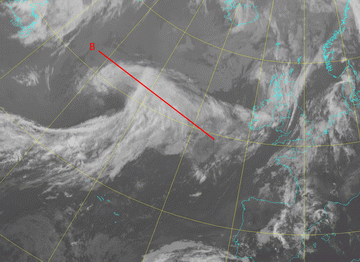

21 June 2005/00.00 UTC - Meteosat 8 IR 10.8 image; position of vertical cross section B indicated
The cross section B is take perpendicular to the Warm Conveyor Belt. On the isentropic surface of 328K a rising warm conveyor belt can be observed. The relative streams of the Warm Conveyor Belt rise from 600 to 400 hPa and turn to the East and do not go into the direction of the occlusion.

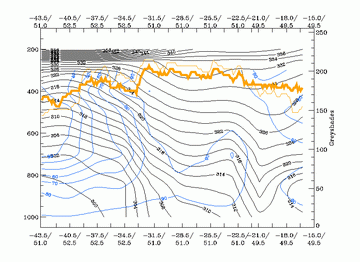

21 June 2005/00.00 UTC - Vertical cross section; black: isentropes (ThetaE), blue: relative humidity, orange
thin: IR pixel values, orange thick: WV pixel values

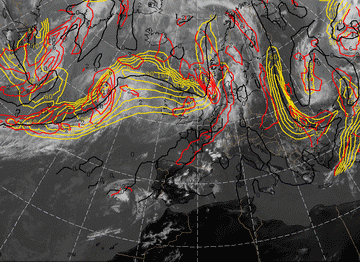

21 June 2005/00.00 UTC - Meteosat IR image (ZAMG); magenta: relative streams 328K - system velocity: 239°
18 m/s, yellow: isobars 328K, position of vertical cross section B indicated
