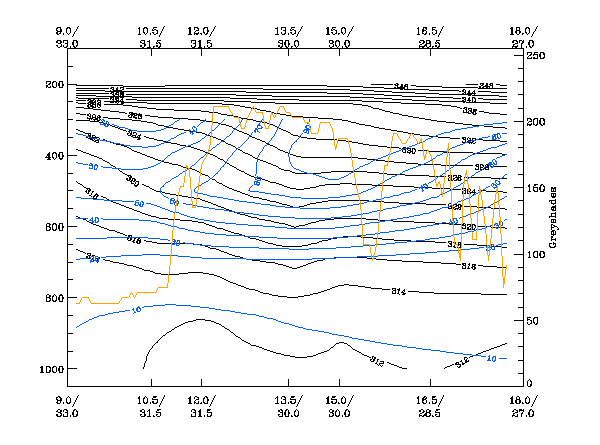

Relative Humidity:

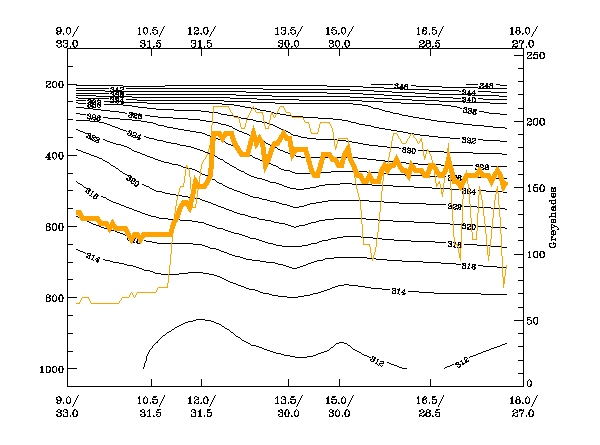

The isentropes do not indicate very distinct frontal and Warm Conveyor Belt systems. The isentropes are inclined
downward but they do not show the high gradient typical for a front. There are very high values of relative humidity in
upper levels along the Warm Conveyor Belt.

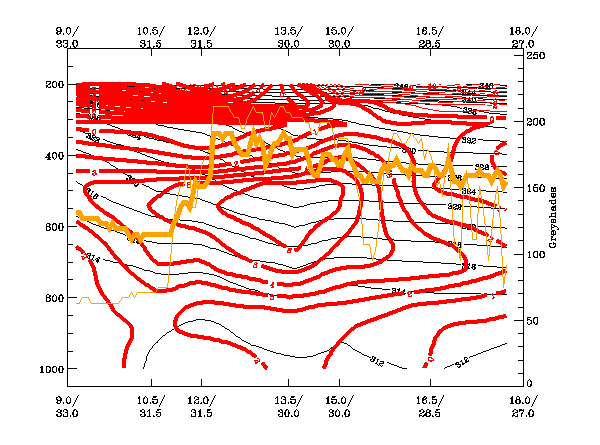

Temperature Advection:
The cloud band of the Warm Conveyor Belt lies within a distinct area of warm advection, with a maximum between 500 and 600 hPa. This is a typical distribution for a Warm Conveyor Belt.
