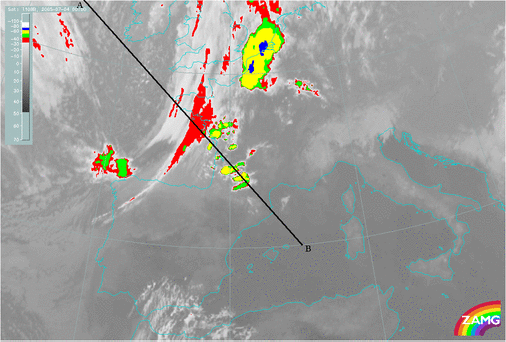

04 July 2005/00 UTC - Meteosat 8 IR10.8 image; position of vertical cross section indicated
|
|
|
|

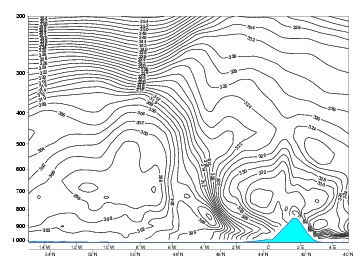

04 July 2005/00.00 UTC - Vertical cross section, black: isentropes (ThetaE)
|
|
|
|

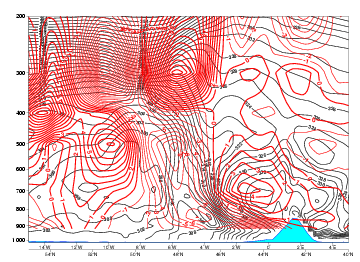

04 July 2005/00.00 UTC - Vertical cross section, red thick: positive temperature advection - WA, red thin: negative temperature advection - CA,
black: isentropes (ThetaE)
|
|
|
|
04 July 2005/00 UTC - Vertical cross section, magenta thick: convergence, magenta thin: divergence, black: isentropes (ThetaE)
|
|
|
|
