Introduction

A special case of convective development is the so-called train effect or train mechanism, in which many intense convective cells form over the same place in a short period of time. This regime produces large amounts of rainfall, therefore being frequently related to flash flood events.

Meteorological Physical Background

The key for understanding why convective systems may produce large precipitation amounts over a certain place is determined by comparing the system motion with the system structure as explained below.

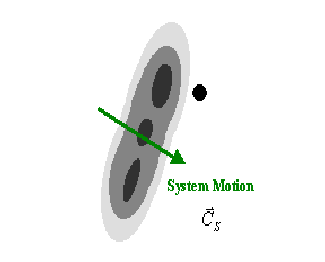

Consider a convective line structure (shades indicate radar reflectivity) moving across a specific location (circle) with a motion ( ) nearly normal to the line.

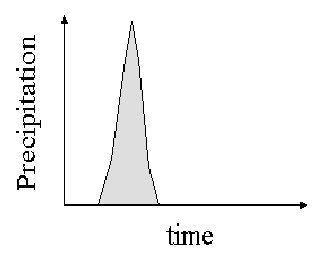

The total rainfall amount at the referred location (shaded area in the graphic) is relatively small.

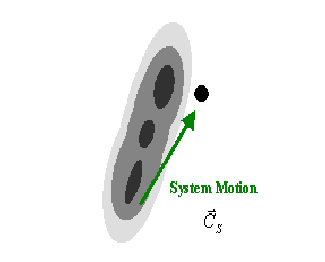

Now consider the same line structure, passing over the same location, but with its motion with a small normal component to the convective line. In this case the single convective structures embedded in the line will consecutively pass over the same spot.

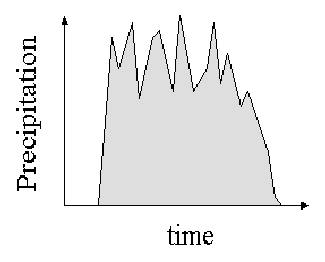

Precipitation plot will reflect this feature, showing consecutive peaks of precipitation during a longer period, therefore with large amounts of total precipitation.
Adapted from Doswell et al (1996).
It is now important to distinguish between system motion and cell motion - system motion represents the movement of the system as whole and cell motion represents the movement of individual cells within the same system (or group of cells as in the case of a MCS or MCC). While cell motion is easily detected following the movement of convective cells in successive satellite or radar images, system motion may be somewhat trickier. For determining system motion from satellite or radar imagery, forecasters need not focus on the movement of single cells (or group of cells) but analyze instead the position of the convective system as a whole for a few hours.

Cell Motion

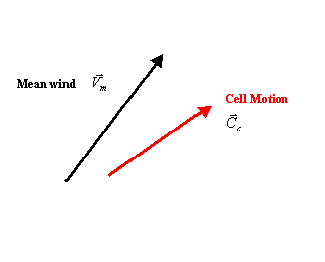

Cell motion ( ) is generally related to the mean wind in a certain tropospheric layer in which cloud systems are embedded. In the example below, cell motion vector is to the right of mean wind vector, which therefore classifies the cell as a right mover. Some studies for MCS and MCC show that cell motion has a higher correlation with wind at 700 hPa.

The estimation of mean wind is obtained from averaging wind vectors in a representative layer, which naturally should vary from case to case. If the cloud layer is well represented by the 850-300 hPa layer, then mean wind can be determined by an average at that layer:

Propagation of the system and System Motion

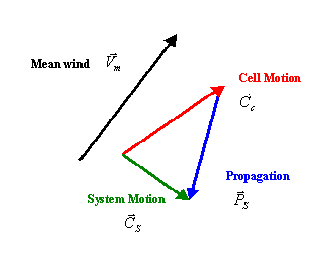

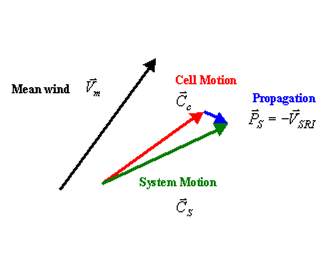

At the end, system motion is what matters to define small or large precipitation amounts in a specific location. System motion ( ) results from combining cell motion ( ) with the propagation of the system as a whole defined by vector .

If the propagation vector differs considerably in azimuth from cell motion (as shown left), then the system motion vector acts in such a way that the system moves to its right during the life-time, affecting different areas.

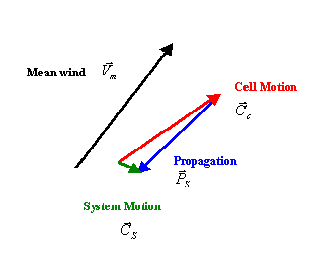

On the other hand, if the propagation vector practically off-sets cell motion (that is, it has almost the same intensity but an opposite direction), then system motion vector is such that the system can be considered quasi-stationary.
Adapted from Corfidi et al (1996) and Doswell et al (1996).

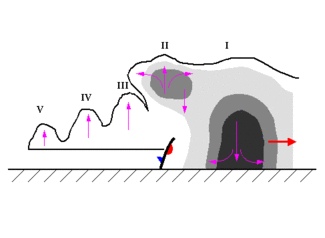

Let us now consider 3 steps in the development of an MCS in which cell motion and propagation have opposite directions (expanding the scheme showed in Multi-cell storms - see Meteorological Physical Background ).

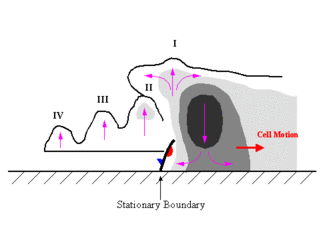

Step 1 - Cell I is forming over the position of a low level outflow boundary (plotted for the sake of simplicity as a stationary front) with a strong updraft above and divergence in the upper troposphere.
Step 2 - Cell I is moving eastward and cell II is now forming over the same stationary boundary. The outflow from cell I interacts positively, reinforcing the updraft of cell II

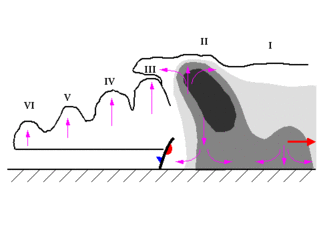

Step 3 - A third cell (cell III) is now building over the same location, but this time at the expense of cell II outflow. This confirms a westward propagation with eastward cell motion, resulting in a train effect.
Adapted from Doswell et al (1996); grey shades represent radar reflectivities of 10, 30 and 50 dBZ).
In fact, propagation can be affected by other factors not directly related to the convective storm. Examples of such factors are fronts or sea-breeze fronts. When these processes act as stationary boundaries for the convective system, the development of new cells will therefore fit the train effect. Note that in literature, the train effect has been analyzed together with up-wind development (back-building) and down-wind development.

From stated above, it is easy to conclude that knowing the propagation vector in an operational basis would be the key tool to detect quasi-stationary convective systems, that is, to forecast heavy rainfall and the probability of occurrence of flash flood events. Unfortunately, the determination of the propagation vector is still not completely clear. Corfidi et al (1996) suggested that the speed and direction of the low-level jet (LLJ) could be indicative of the propagation.

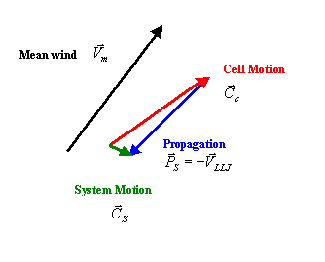

AEMET (1999), in a study for MCSs in Iberian Peninsula area, also suggest a simple approximation in which propagation could be retrieved from wind at 850 hPa, that is

In latter studies, Corfidi (1998, 2003) updates the results referring that propagation for MCS does not necessarily occurs most rapidly in the direction of the LLJ, but rather in the direction of the largest system relative low-level convergence - this direction may or may not be the direction of the LLJ.

In the second case, when convergence is maximized in a direction away from the LLJ (for instance due to the existence of gust fronts under conditionally unstable environments), the system motion can be very different from the one predicted by the original technique. In this up-dated technique, the propagation vector may be called Storm Relative Inflow (SRI) vector. The resulting system motion can be very large (downwind propagation), therefore not fitting a train effect scenario.

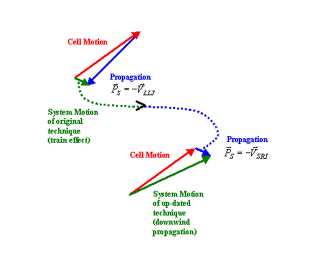

Note that the author suggests that the propagation for this up-dated technique matches the system motion vector obtained using the original technique.
This may seem surprising, but this suggestion is based on the fact that the system motion obtained using the original technique can be considered as the vector difference between two flows: i) the gust front (considered to be moving at the speed of the mean cloud layer wind) and ii) the low-level flow (considered to be represented by the low-level jet).

Finally, note that the mechanism of training has also been found to happen in systems similar in nature to a MCS but that do not meet the size criteria; these systems, referred to as sub-MCS, are related to moderate precipitation events (Saarikale, 2009).

Cloud Structure in Satellite Images

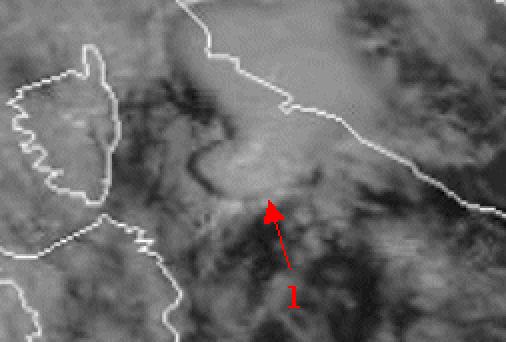

Train effect is clearly seen in satellite images making use of animations of several hours. In the animation shown below (left) for an event on 20 September 1999, the 30 minutes time resolution WV channel of Meteosat 7 can be followed between 02.00 UTC and 18.00 UTC. During the 16 hours you can see the convective area as whole moving southeastwards, with many convective systems forming over the Tyrrhenian sea.
20 September 1999/18.00 UTC - Meteosat 7 WV image
20 September 1999/14.00 UTC - Meteosat 7 WV image
If focusing on a narrower period of time - from 07.30 to 14.00 UTC (right animation above), one can see that the convective systems are forming over the same area, as plotted below left at 10.00 UTC (cell 1 - fully developed) and below right at 11.30 UTC (cell 1 moved northeastward and a new fully developed cell - cell 2 - formed in the same area where cell 1 was 90 minutes earlier).

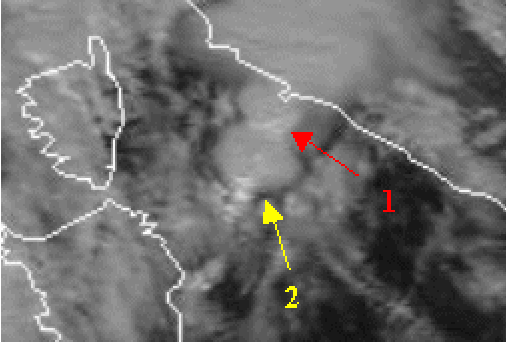

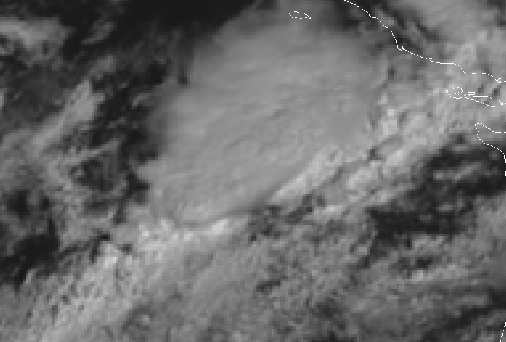

20 September 1999/10.00 UTC - Meteosat 7 VIS Image
20 September 1999/11.30 UTC Meteosat 7 VIS Image

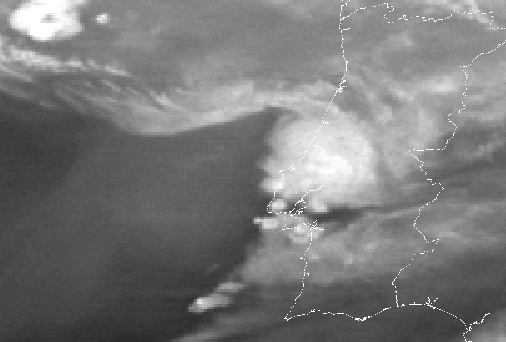

Two recent situations of train effect observed by MSG are shown below. The first happened in Portugal on 17 to 18 February 2008 producing severe flash floods (with maximum precipitation amounts of 99.7 mm in 6 hours and 153.6 mm in 24 hours in Lisbon). The 24 hour animation of the cloud type product from SAF Nowcasting shows several convective systems forming over Lisbon area during night and early morning on the 18th and also during morning to the southeast of Lisbon, in a similar pattern as the case over the Tyrrhenian sea.
17 February 2008/18.00 UTC - Cloud Type Product
17 February 18.00 - 18 February 18.00 UTC 15-minutes image loop
The second corresponds to an event over the Gulf of Biscay, west of Nantes on 27 July 2006. Besides the train effect easily detected in the animation above over the Gulf Biscay (shown below), there was also another similar situation over southeastern UK on the same day (analyzed later). In the remaining of this special investigation, the focus will be made on the events with MSG data.

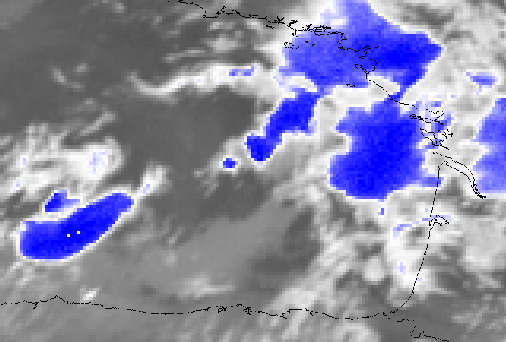

27 July 2006/06.00 UTC - Meteosat 8 IR10.8-WV6.2 difference image (overshooting tops in yellow or red)
27 July 06.00 - 14.00 UTC 15-minutes image loop

Key Parameters

Note that in many studies the synthesis of key parameters for large-scale patterns or vertical profiles are simply summarized for flash flood events, with no special focus on the train effect. Although, this special investigation is being focused on the train effect, the following description broadens the scope of analysis for operational application, taking into consideration that according to Doswell et al (1996) virtually all flash floods are produced by MCSs.

Also note that train effect results generally in the production of some convective systems over the same area for up to around 4-5 hours. In a longer range (10-12 hours) the area where the train effect occurs usually tends to move slowly southeastward, starting to affect neighboring areas, as shown above. Therefore, key parameters in model analysis with 6 hours difference can very often depict slightly different affected areas.

850-500 hPa Thickness Diffluence

The major convective rainfall events are generally found in areas of diffluence of the thickness parameter, which determine regions of low-level convergence or upper-level diffluence. Naturally this is a large-scale parameter and provides a general indication of the location for convection. If the pattern of thickness diffluence remains relatively stationary with time, the possibility for train effect should be in the forecasterīs mind and included in his/her nowcasting activities with satellite or radar imagery.

The case below shows diffluence and convective activity in the air mass RGB in northern Spain, Gulf of Biscay, France and southern UK at 06 and 12 UTC on 27 July 2006.

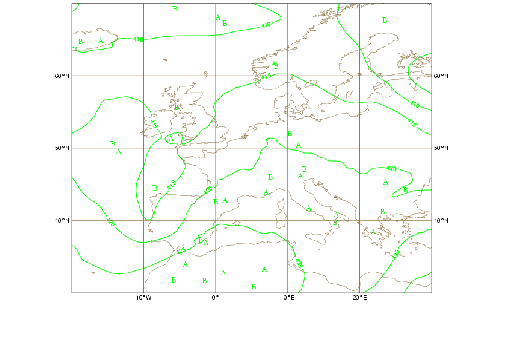

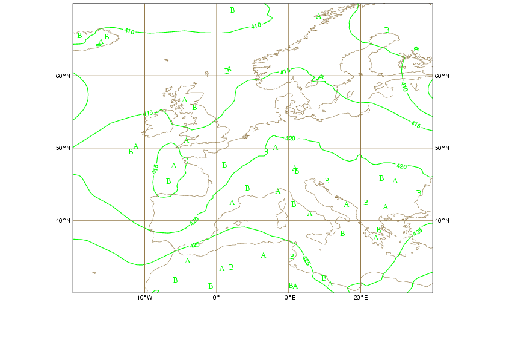

27 July 2006/06.00 UTC - 500-850 hPa Thickness
27 July 2006/12.00 UTC - 500-850 hPa Thickness

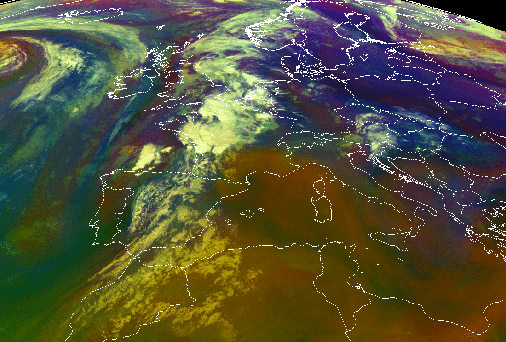

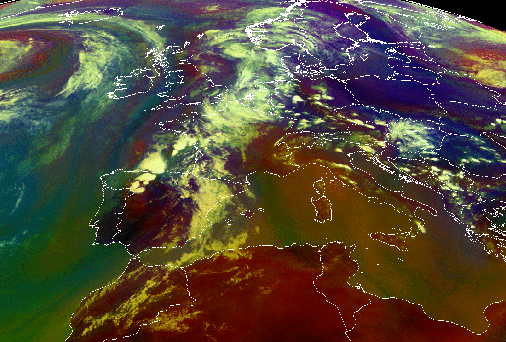

27 July 2006/06.00 UTC - Meteosat 8 air mass RGB (WV6.2-WV7.3; IR9.7-IR10.8; WV6.2i) image
27 July 2006/12.00 UTC - Meteosat 8 air mass RGB (WV6.2-WV7.3; IR9.7-IR10.8; WV6.2i) image

850hPa Wet Bulb Potential Temperature (Theta W)

Many train effect cases with potential for flash floods happen in "warm" months, within the influence of tropical air masses, both over a ridge or close to a gradient of the wet bulb potential temperature field. This last situation also fits some train effect cases happening during "cold" months. The example presented above shows both cases:

Case 1:

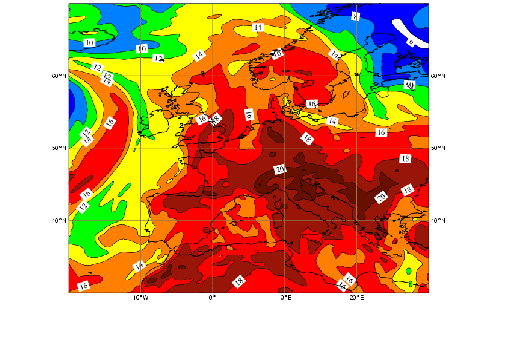

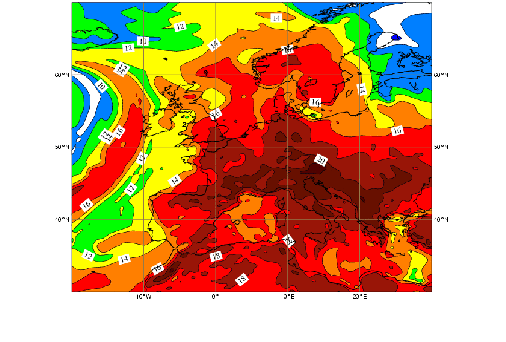

27 July 2006/06.00 UTC - Wet Bulb Potential Temperature 850 hPa

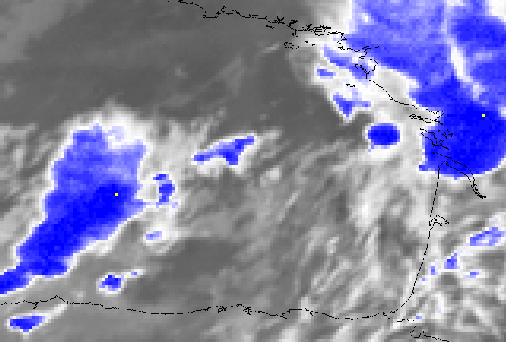

27 July 2006/03.00 UTC Meteosat 8 IR10.8-WV6.2 difference image (overshooting tops in yellow)

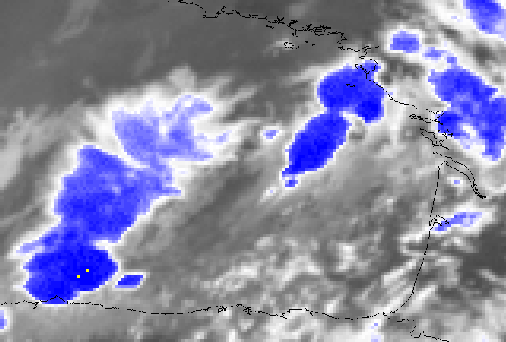

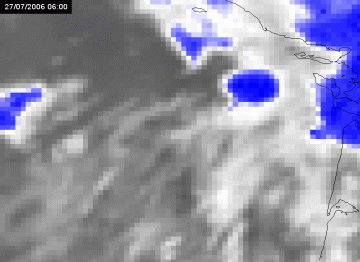

27 July 2006/06.00 UTC Meteosat 8 IR10.8-WV6.2 difference image (overshooting tops in yellow)
27 July 2006/09.00 UTC Meteosat 8 IR10.8-WV6.2 difference image (overshooting tops in yellow)
In mid-day successive formation of different convective systems was happening over a particular location in the Gulf of Biscay area, having the train effect ended here in the evening with a total duration of around 18 hours.

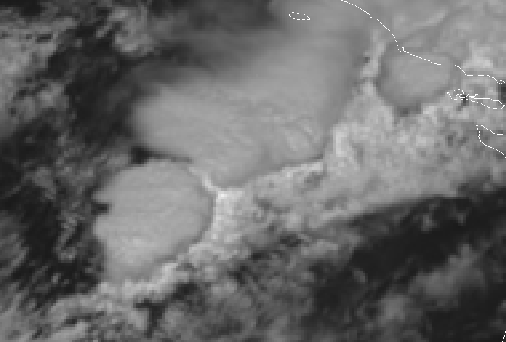

27 July 2006/10.15 UTC - Meteosat 8 HRV image
27 July 2006/12.15 UTC - Meteosat 8 HRV image

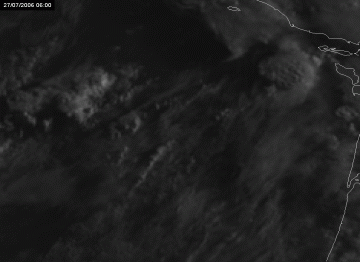

27 July 2006/06.00 UTC - Meteosat 8 HRV image
27 July 2006/06.00 UTC - Meteosat 8 IR10.8-WV6.2 difference image (overshooting tops in yellow or red)

Case 2:

From midday onwards during the same day, a formation of different convective systems over south UK, in an area between Leicester, Oxford and Cambridge, also fitted the train effect, but in this case a ridge (check the 18°C isotherm) is stretching from France into the UK.

27 July 2006/12.00 UTC - Wet Bulb Potential Temperature 850 hPa

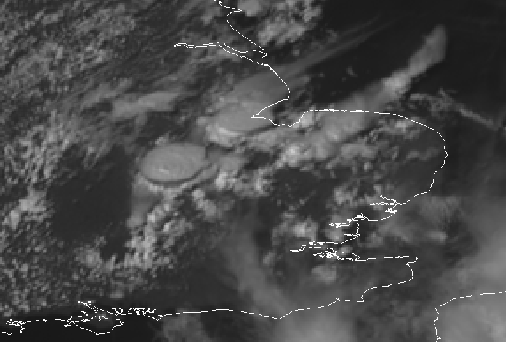

27 July 2006/13.45 UTC Meteosat 8 HRV image
27 July 2006/14.30 UTC Meteosat 8 HRV image

Specific humidity convergence at 1000 hPa

An important key parameter to consider from NWP outputs is the specific humidity convergence at 1000 hPa, which shall have local maxima in the train area. It might be expected that this field depicts other local maxima where the forecaster on duty sees no convective development. Naturally, it is a nowcasting task for the forecaster to find which model proposals for convection are likely to develop in the near future, also taking into consideration expected deviations between the atmospheric models and the atmosphere itself.

Naturally, if only convergence at 1000 hPa is available (and not specific humidity convergence), this can also be an alert, but note that moisture inflow is in fact one of the main ingredients to convection.

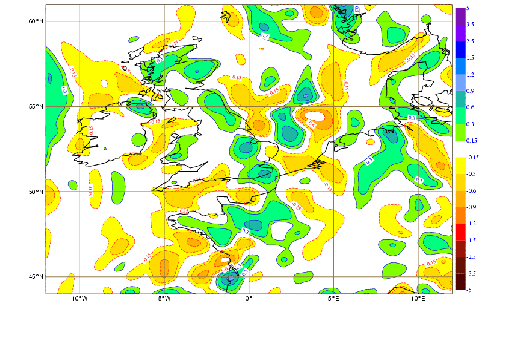

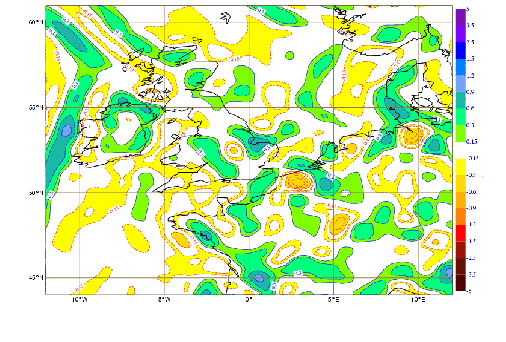

27 July 2006/12.00 UTC - Specific Humidity Convergence 1000 hPa (in 10^-5 g/Kg/s). Greenish and bluish colors represent humidity convergence; yellowish and reddish colors represent humidity divergence.
27 July 2006/18.00 UTC - Specific Humidity Convergence 1000 hPa (in 10^-5 g/Kg/s). Greenish and bluish colors represent humidity convergence; yellowish and reddish colors represent humidity divergence.
In the sequence of images below referring to the analyzed time period it is possible to note that:
27 July 2006/16.00 UTC - Meteosat 8 HRV image. Individual cells numbered from 1 to 4
27 July 2006/17.00 UTC Meteosat 8 HRV image. Individual cells numbered from 1 to 4

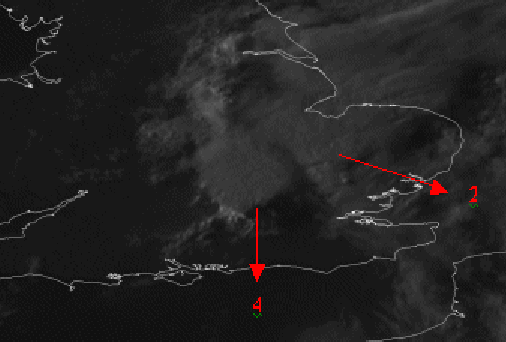

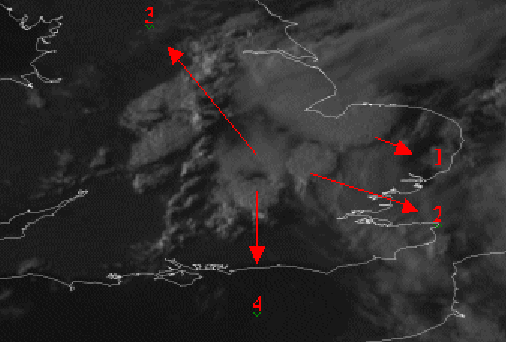

27 July 2006/18.00 UTC Meteosat 8 HRV image. Only cells 2 and 4 are identifiable.

Vorticity Advection at 300hPa

Vorticity advection at 300 hPa has also been found to show areas of local maxima around the spot for successive convection. It should be noted, however, that these maxima may not be in a clear relation to an upper-level jet or strong tropopause anomalies, but rather related to weak tropopause anomalies (see similarities with the conceptual model Enhancement of convection by PV, Convective Cloud Features In Typical Synoptic Environments: Enhancement of convection by PV ). Again, like for specific humidity convergence, other local maxima may be present. Therefore, nowcasting will help finding the first convective bursts and check if there is or not stationarity of the systems.

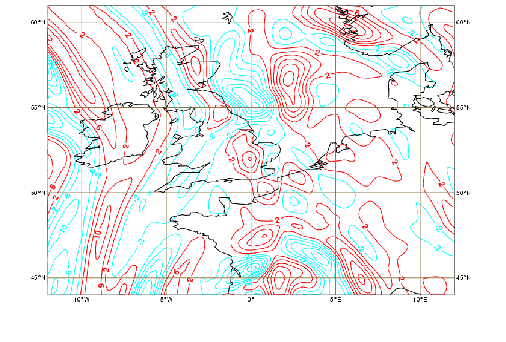

27 July 2006/18.00 UTC - Vorticity Advection 300 hPa

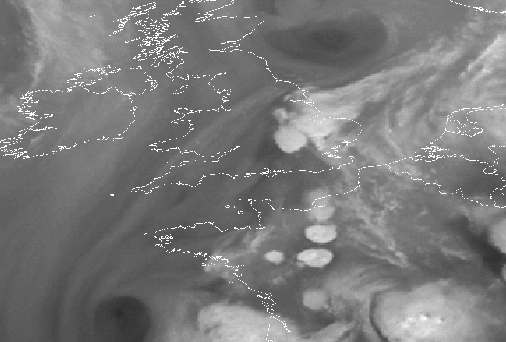

27 July 2006/18.00 UTC - Meteosat 8 WV6.2 image

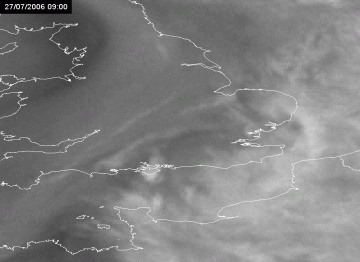

27 July 2006/09.00 UTC - Meteosat 8 WV6.2 image

Instability (Boyden Index)

Finally one more obvious condition, which could even be firstly considered, is stability. In this case, the Boyden index is presented, whose threshold for risk of thunderstorm can be set to 95. Note, that one should not need to have the largest values in the area of train effect. In these instants, larger values are reached in Continental Europe, where convection also developed, but not so much fitting to train effect. The convective activity during the afternoon is shown with the deep convection RGB.

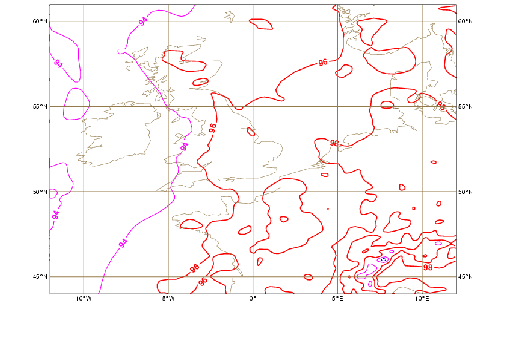

27 July 2006/12.00 UTC - Boyden Index

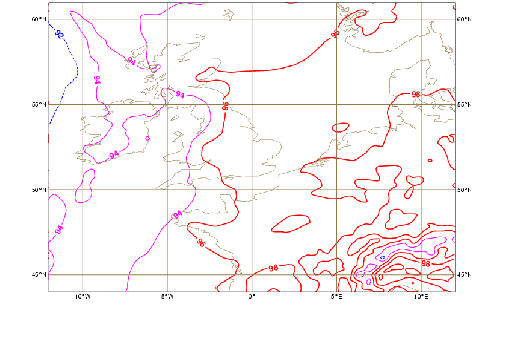

27 July 2006/18.00 UTC - Boyden Index

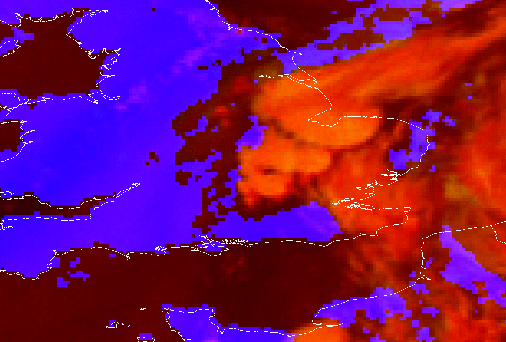

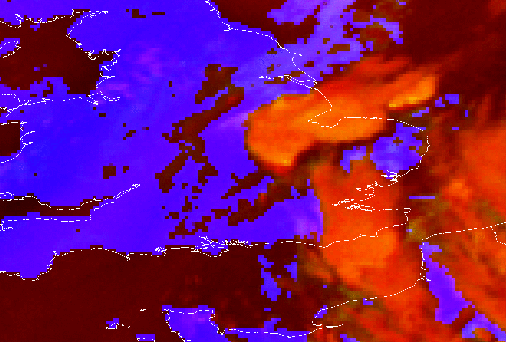

27 July 2006/15.15 UTC - Meteosat 8 Deep Convection RGB (WV6.2-WV7.3; IR3.9-IR10.8; NIR1.6-VIS0.6) image
27 July 2006/16.00 UTC - Meteosat 8 Deep Convection RGB (WV6.2-WV7.3; IR3.9-IR10.8; NIR1.6-VIS0.6) image
27 July 2006/17.00 UTC - Meteosat 8 Deep Convection RGB (WV6.2-WV7.3; IR3.9-IR10.8; NIR1.6-VIS0.6) image
27 July 2006/18.00 UTC - Meteosat 8 Deep Convection RGB (WV6.2-WV7.3; IR3.9-IR10.8; NIR1.6-VIS0.6) image
Instability together with the last two parameters (specific humidity convergence and vorticity advection) should be evaluated together, in a sense that areas where all the 3 parameters sum up should be followed with more attention in a smaller scale after a larger-scale analysis is provided by thickness (850-500 hPa) and wet bulb potential temperature at 850 hPa.

Low-Level Jet and Veering

As seen in the Meteorological Physical Background, the propagation of the convective system may or not be related to a LLJ. In the case where a train effect event is dynamically related to a LLJ, one operational challenge for a forecaster is to identify its existence, whether using model forecasts or observational data from radio soundings or radar. On one side, the model may not reproduce the LLJ and, on the other side, the LLJ position/intensity may not be observed due to a sparse resolution of radio sounding and radar networks for the analysis of this phenomenon.

For the analyzed case on 27 July 2006, the model does not detect any indication of a LLJ in the vicinity of the area of train effect (a LLJ was considered to have an intensity of 20kt or more in some layer above surface and below 850 hPa). Following the previous considerations, either the LLJ was not dynamically important or it was but it was not correctly modeled.

However, for the Lisbon case shown in the satellite image chapter, a LLJ was found both by model and radar in the vicinity of the affected areas. In the radar vertical profile sequence shown below, wind speeds of 35-40kt at a height of approximately 1000m were measured for several hours during the event, with a persistence veering of the wind from SE to SW in the first two km. This was also an indication of warm air advection in the lower levels and, as a consequence, increasing instability.

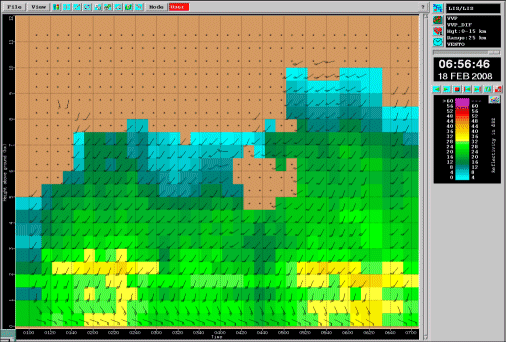

18 February 2008/01.00 - 07.00 UTC - Radar Coruche; Vertical Wind Profile (in kt) and Average Reflectivity in layers (in dBZ). The radar station is located around 80 km ENE of Lisbon.
This observation somewhat agrees with model data as can been seen in ECMWF analysis at 06.00 UTC. A LLJ is depicted with its axis around 925 hPa and oriented from Cadiz gulf to the northwest of the Iberian Peninsula. The cross section along 41°N parallel finds the LLJ over Porto city. The vertical profile over Lisbon area shows a slight wind maximum around 940hPa and confirms the veering of the wind. Note that the vertical profile was obtained over the area of convective development, which is to the southwest of model LLJ and also not exactly over the radar location.

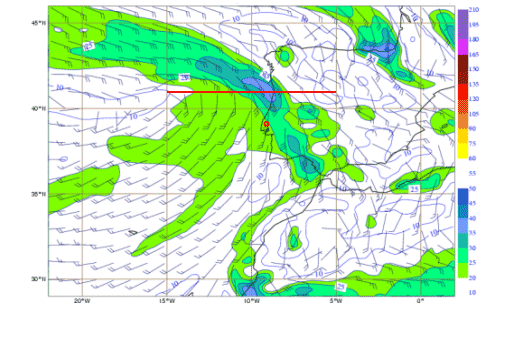

18 February 2008/06.00 UTC - Wind barbs and isotachs 925 hPa (red line for cross section and red circle for vertical profile location)
18 February 2008/06.00 UTC - Meteosat 9 WV image WV 6.2 image

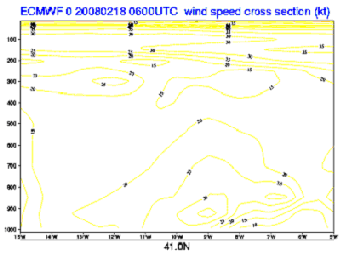

18 February 2008/06.00 UTC - Vertical cross section; yellow: isotachs

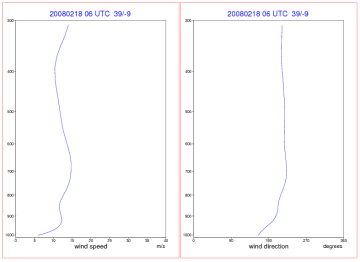

18 February 2008/06.00 UTC - Vertical profile; left: wind speed; right: wind direction

Final Note

This Special Investigation started with a preliminary evaluation of around 100 cases of convective systems over Europe between 1992 and 2009 with both Meteosat first and second generation satellites. These cases were previously studied under the scope of EUMETSAT and EUMETRAIN activities. After excluding orographic induced convection, a total of 7 cases of clear visual train effect were explored in detail; 3 of these cases are presented here.
