Cumulonimbus (Cb) and Mesoscale Convective System (MCS) - Key Parameters

Cold cloud top enhancement

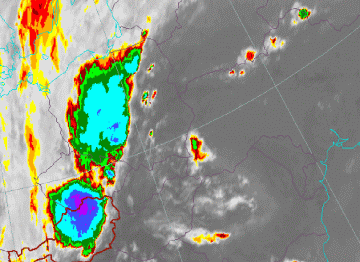

	30 May 2005/15.00 UTC - Meteosat 8 IR 10,8 enhanced image

Weather reports

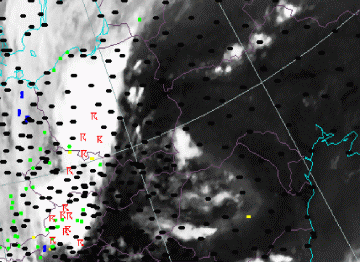

	30 May 2005/18.00 UTC - Meteosat 8 IR 10,8 image; weather events (green: rain and showers, blue: drizzle, red: thunderstorm with precipitation, orange: hail, black: no precipitation )

Lightning Reports

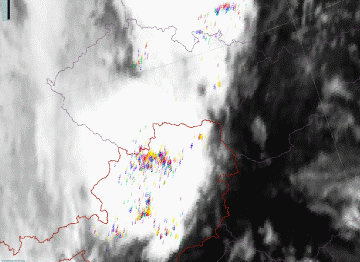

	30 May 2005/18.00 UTC - Meteosat 8 IR 10,8 image; Lightning interval (yellow: 0-5 min, orange: 5-10 min, red: 10-15 min, magenta: 15-20 min, blue: 20-25 min, green: 25-30 min)

Radio Soundings

30 May 2005/12 UTC - Meteosat 8 IR 10,8 image; position of Wroclaw sounding station indicated	30 May 2005/12.00 UTC - Radio sounding Wroclaw; Wind direction and speed
	30 May 2005/12.00 UTC - Radio sounding Wroclaw; thick solid: temperature, black dashed: dew point

Radar

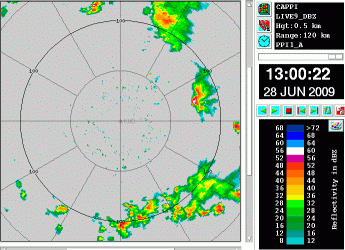

Constant Altitude Plan Position Indication (CAPPI)

• Constant altitude data is picked and interpolated from different elevation scans
• Beyond a certain distance, the lowest available data is selected
• Avoids somewhat the PPI problems: ground clutter near the radar nd overshooting of the beam far from radar

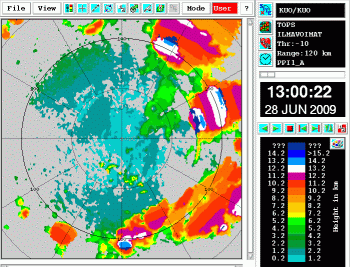

Tops

• Tool for following the development of a convective system
• Used together with the temperature profile
• When tops reach the value of -15°C, precipitation begins
• When tops reach the value of -25°C, the chance of thunder is considerable

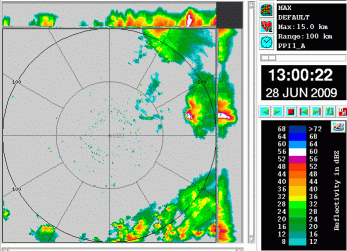

MAX

• Tool for identifying the strongest cells in a multicell system
• High dBz values at high altitudes (e.g. +30 dBz at 5 kilometres) almost certainly relate to hail or wet hail, and indicate strong updrafts
• The side panels provide more accurate information about the position of cells



Range Height Indicator (RHI) and Cross Section (XSECT):

• A cross section is a tool for studying the vertical structure and to identify possibly hail-generating cells
• Weaker intensities in the thinner parts of the anvil (below -10 dBz) can only be detected close to the radar
• The bright band (maximum reflectivity layer due to melting snow) can be detected even in convective rain in spite of strong vertical movements, which make it weaker than in stratiform rain
• Even if the radar system is not performing RHI scans, one can usually make cross sections (XSECT) of the same data which is used e.g. for MAX products. XSECT is used like RHI, but it usually has worse vertical resolution.

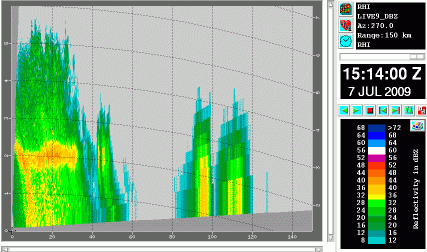

RHI	XSECT

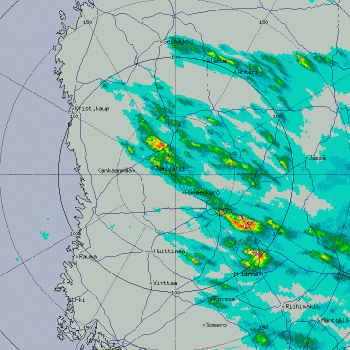

Accumulated precipitation for N hours (RAINN product)

• Generated from CAPPI products
• Points out the areas of maximum precipitation
• Outstanding resolution in space and time
• The accuracy of an individual measurement is only about 50%, because far from the radar the measurement volume is quite large and well above the ground
• Good accuracy is gained when the rain amounts are summarized over a longer period from the whole radar network with some corrections in the overlapping areas

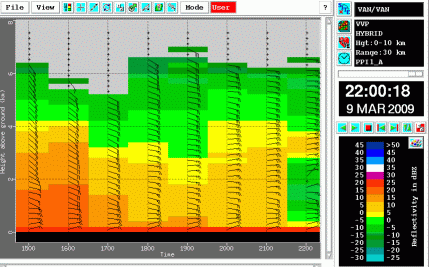

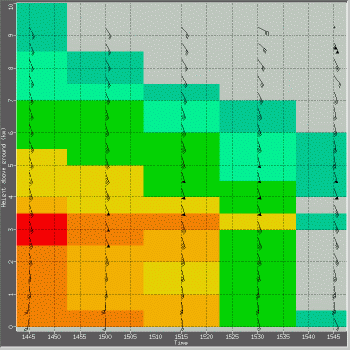

Time - Height cross section of Volume Velocity Processing wind profiles (THVVP - time series of wind profiles)

• The best mesoscale tool for studying changes in wind shear, given enough time resolution (typically a new sounding every 15 or 30 minutes)
• Radar winds represent an average of a larger volume, e.g. in this case a cylinder 40 kilometres in radius, 200 metres thick
• If the wind field is not linear, the average through such a volume can be erroneous
