23 March 2009/11.29 UTC NOAA 18 VIS 0.6+ VIS 0.9+IR 10.9 RGB image; position of vertical cross section indicated
|
|
|

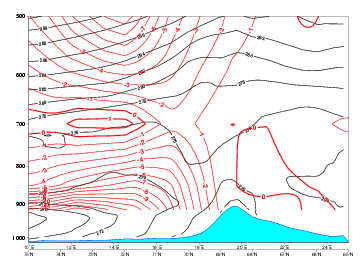

23 March 2009/12 UTC - Vertical cross section; black: isentropes (ThetaE), red thick: temperature advection - WA, red thin: temperature
advection - CA
|
|
|
|

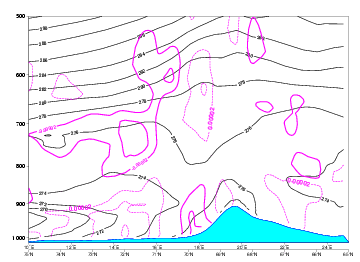

23 March 2009/12 UTC - Vertical cross section; black: isentropes (ThetaE), magenta thick: convergence, magenta thin: divergence
|
|
|
|

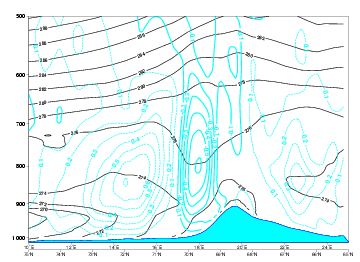

23 March 2009/12 UTC - Vertical cross section; black: isentropes (ThetaE), cyan thick: vertical motion (omega) - upward motion, cyan thin:
vertical motion (omega) - downward motion
|
|
|
|
